0 votes

Given a FSM: A={2Vin,2Vout,I,2Vstate,R}A={2Vin,2Vout,I,2Vstate,R}
where Vin={a}Vout={o}Vstate={p,q}

I=!(q<->p),

R=(next(q)|p->!(o->a))&q&next(p)

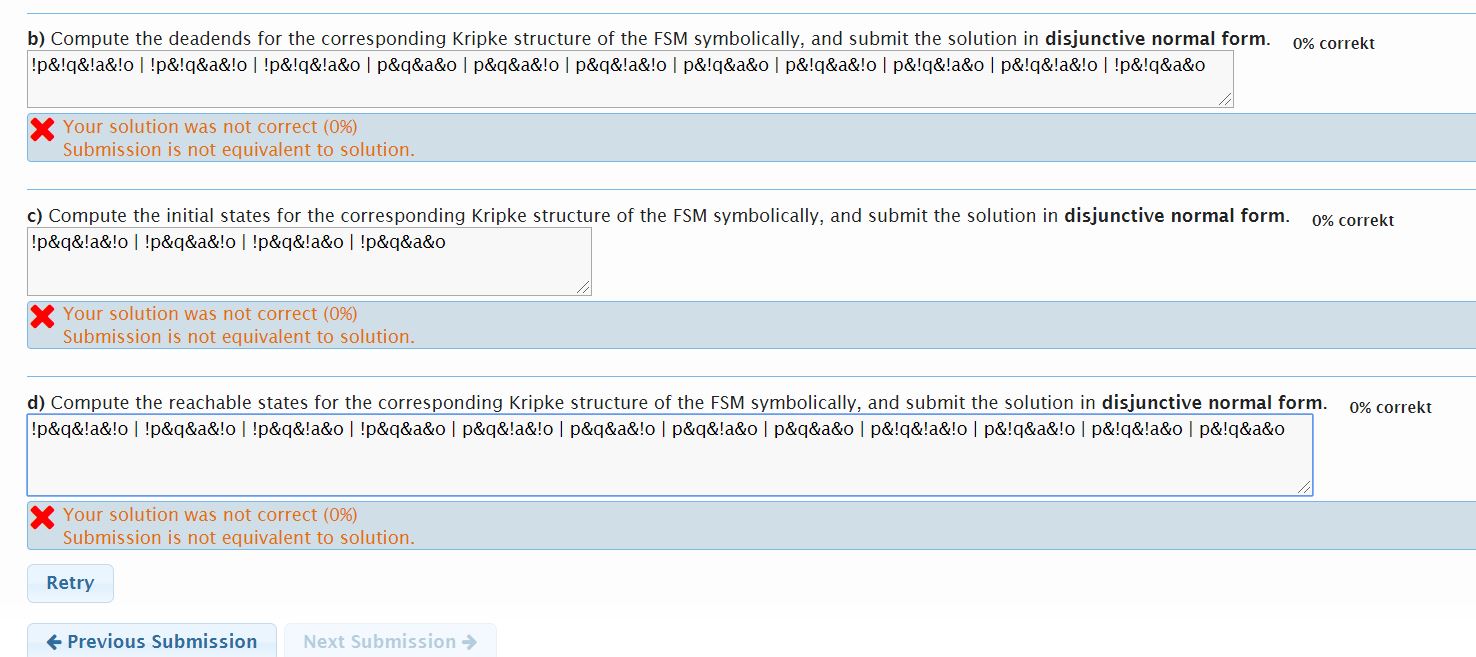

I am trying to compute the deadends, initial states, reachable states for the following FSM and i get the following:

But the system is not accepting my answers. I tried to compute with the help of tool and it matches with my calculation. Can anybody please tell me where am I making mistake!!!! :(

in * TF "Emb. Sys. and Rob." by (120 points)

1 Answer

0 votes

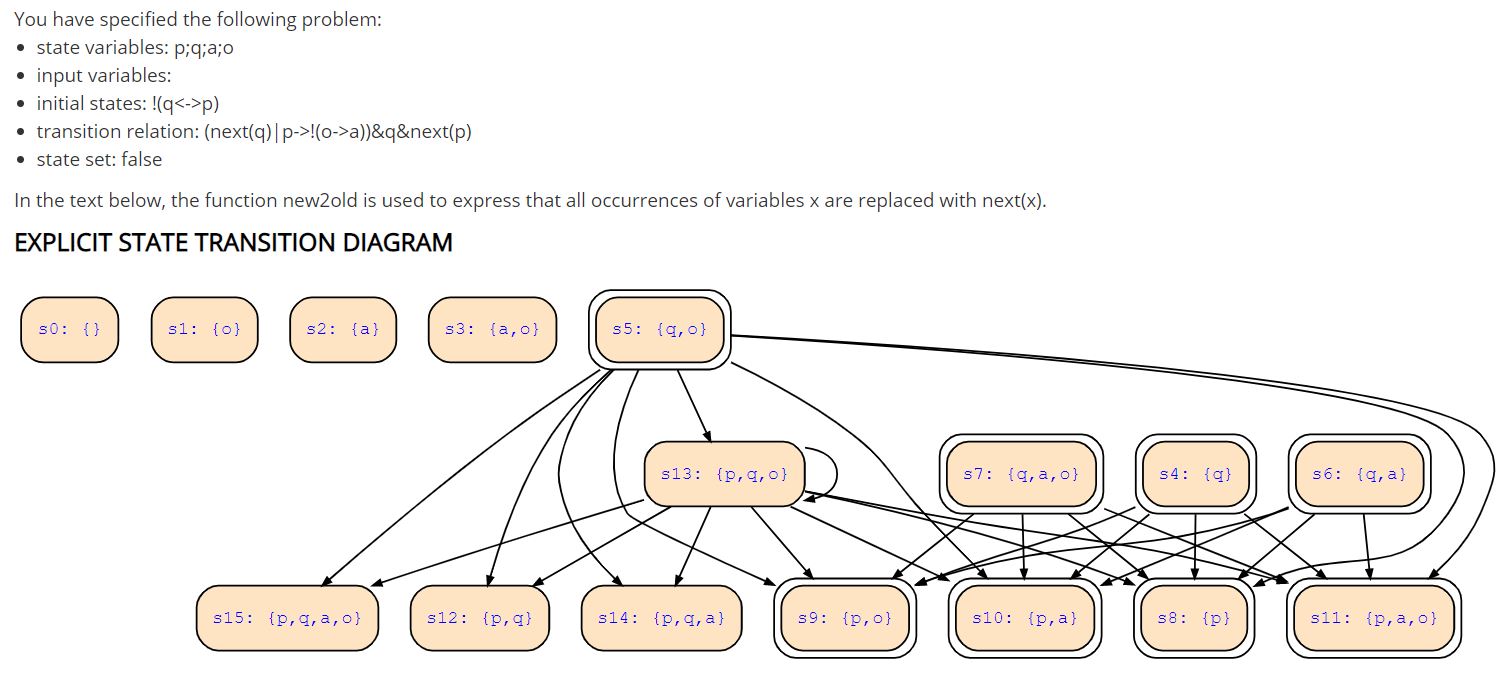

We consider a Kripke structure with variables p,q,a,o, initial states I=¬(q<->p) and transition relation R=(next(q) ∨ p->¬(o->a)) ∧ q ∧ next(p). The state transition system looks as follows:


The transition relation can be simplified to

   q ∧ ¬a ∧ o ∧ next(p) ∨ ¬p ∧ q ∧ next(p) ∧ ¬next(q)

The deadend states, i.e., states without outgoing transitions, are computed as pre∀(false) which is computed as ¬(q ∧ ¬(o->a)) ∧ ¬(q ∧ (p->¬(o->a))) and can be simplified as p ∧ ¬o ∨ ¬q ∨ p ∧ a. If you expand it to a full DNF, you see the following eleven states:

    ¬p ∧ ¬q ∧ ¬a ∧ ¬o ∨
    ¬p ∧ ¬q ∧  a ∧ ¬o ∨
    ¬p ∧ ¬q ∧ ¬a ∧  o ∨
     p ∧  q ∧  a ∧  o ∨
     p ∧  q ∧  a ∧ ¬o ∨
     p ∧  q ∧ ¬a ∧ ¬o ∨
     p ∧ ¬q ∧  a ∧  o ∨
     p ∧ ¬q ∧  a ∧ ¬o ∨
     p ∧ ¬q ∧ ¬a ∧  o ∨
     p ∧ ¬q ∧ ¬a ∧ ¬o ∨
    ¬p ∧ ¬q ∧  a ∧  o

To remove transitions leading to them, we modify the transition relation to

      (q ∧ ¬a ∧ o ∧ next(p) ∨ ¬p ∧ q ∧ next(p) ∧ ¬next(q))
    ∧
      ¬(next(p) ∧ ¬next(o) ∨ ¬next(q) ∨ next(p) ∧ next(a))

Left are now just the following transitions (I don't show the other 14 states without transitions):

I guess the solution should just consider this clean-up of the structure, i.e., the structure reduced to states on infinite paths. From here, it should be simple to get the final answers.

by (166k points)
Thanks for your reply! I can see my answers are matching with your answer. But still the system is showing it as wrong. Can you please check my answers and point out my mistake? Thanks..
As said, I think that you should consider the cleaned Kripke structure with the remaining two states. Then, there would be only one initial state, and only two reachable states.
Got it. Thanks!
