+1 vote

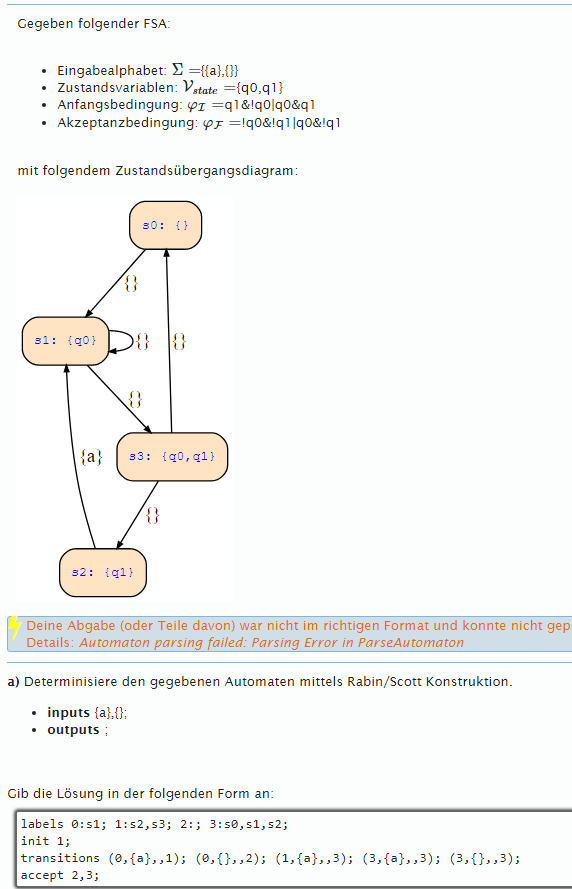

The following automata is given:

Using Rabin/Scott I created the following DFA:

inputs {a},{};

outputs;

labels 0:s2,s3; 1:s0,s2; 2:s1; 3:s2; 4:s1,s3; 5:s0,s1,s2,s3; 6:;

init 0

transitions (0,{},,1); (1,{},,2); (2,{},,4); (2,{a},,3); (4,{},,5); (4,{a},,3); (5,{},,5); (5,{a},,3); (0,{a},,6); (1,{a},,6); (3,{},,6); (3,{a},,6);  (6,{a},,6);  (6,{},,6);

accept 1,2,4,5

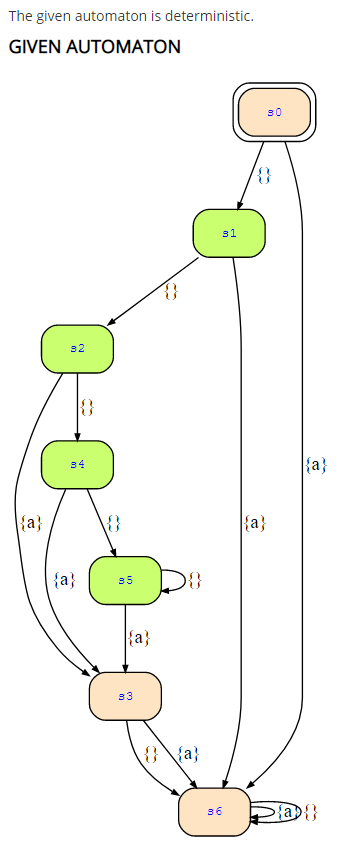

Using Teaching Tools to visualise:

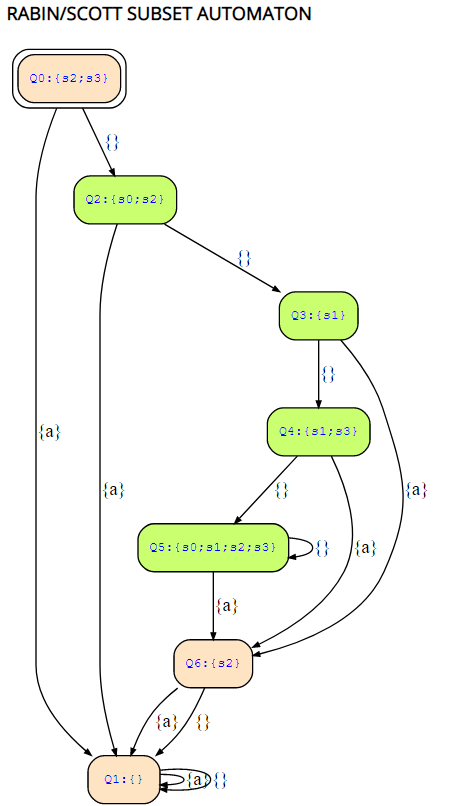

If I use Teaching Tools to create a DFA using only the given input I get:
which looks exactly like the DFA I constructed.

However, when I submit my solution I get the response "Submission is equivalent to solution", even though to me it looks to be the same automaton.


edit: fixed wrong screenshot, removed unnecessary info

in * TF "Emb. Sys. and Rob." by (380 points)
edited by

1 Answer

+1 vote

Best answer

You have to distinguish between the syntax you need for the teaching tool and the online exercise system.

Your given automaton is described as follows for the teaching tool:

    inputs {a},{};
    init 2,3;
    transitions
        (0,{},1);
        (1,{},1); (1,{},3);
        (2,{a},1);
        (3,{},0); (3,{},2);
    accept 0,1;

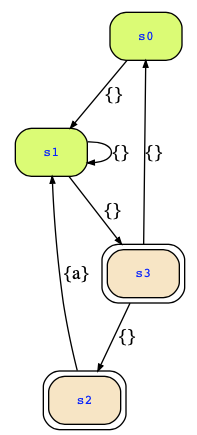

It looks as follows:

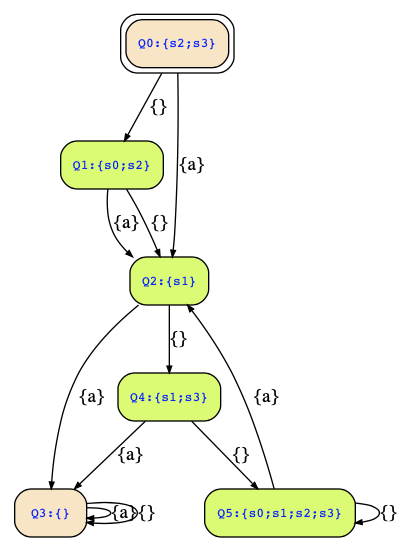

The deterministic automaton obtained looks as follows:

It is described as follows (for the teaching tool):

    inputs {a},{};
    init 0;
    transitions
        (0,{},1); (0,{a},2);
        (1,{},2); (1,{a},2);
        (2,{},4); (2,{a},3);
        (3,{},3); (3,{a},3);
        (4,{},5); (4,{a},3);
        (5,{},5); (5,{a},2);
    accept 1,2,4,5;

where the superstates are constructed as follows:

    labels 0:s2,s3; 1:s0,s2; 2:s1; 3:; 4:s1,s3; 5:s0,s1,s2,s3;

Note the labels used for the submission to the online exercise system must not be used for the teaching tool. They don't have a meaning for an automaton there, and are just used for the submission to see how you constructed the superstates in the Rabin-Scott construction.

by (143k points)
selected by
