Doubt in Automata

Question

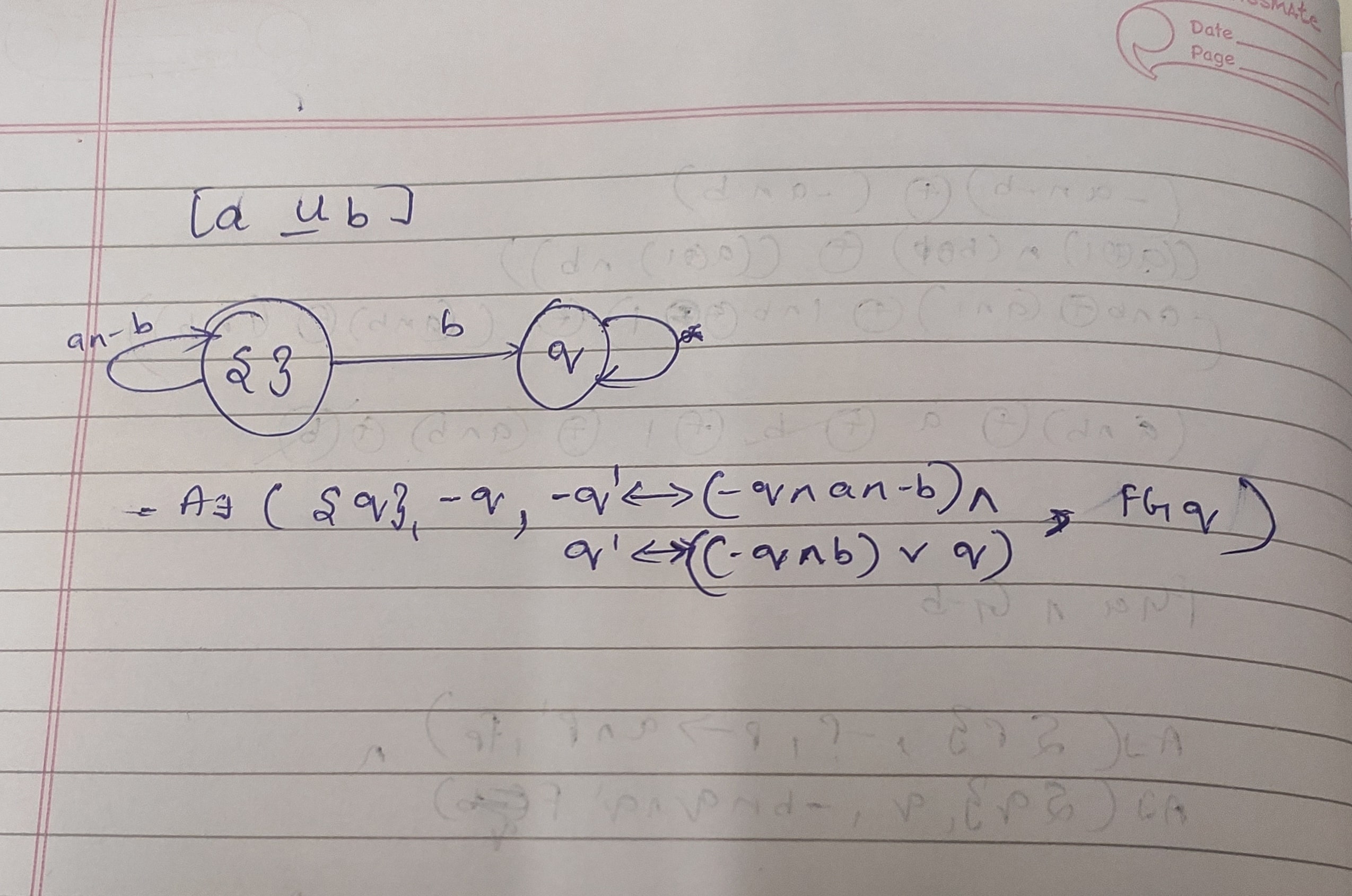

can [a SU b] be expressed as an automaton in this way?

Answer 1

The drawing of the automaton makes sense to me, but the transition relation is not correct. You just have the following three transitions:

!q & !next(q) & !b & a  |
!q &  next(q) &  b |
 q &  next(q)

So, the above should be your transition relation, the rest is fine!
