LTL Model checking

0 votes

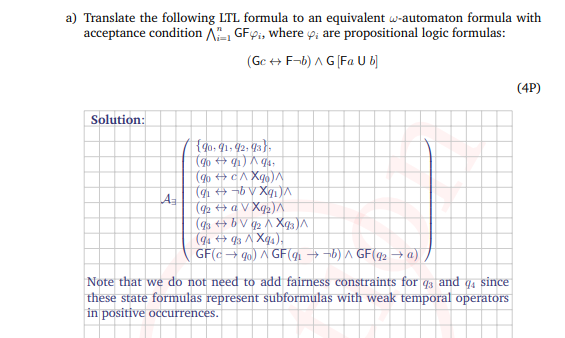

In this solution, why wasn't q4 included in the state set, G[Fa U b] is represented as q4.

Also if i had added the fairness constraints for q3 and q4 it would still be a correct solution right ?

in * TF "Emb. Sys. and Rob." by (790 points)

1 Answer

0 votes

Best answer
That seems to be a mistake. q4 must also be added to the set of state variables. Fairness constraints for q3 and q4 are not needed, but it is not wrong to add them. Which exam paper was this?
by (139k points)
selected by
25th of August 2020
by (790 points)
Thanks for pointing this out, it has been fixed now.
by (139k points)
