0 votes

Hello all,

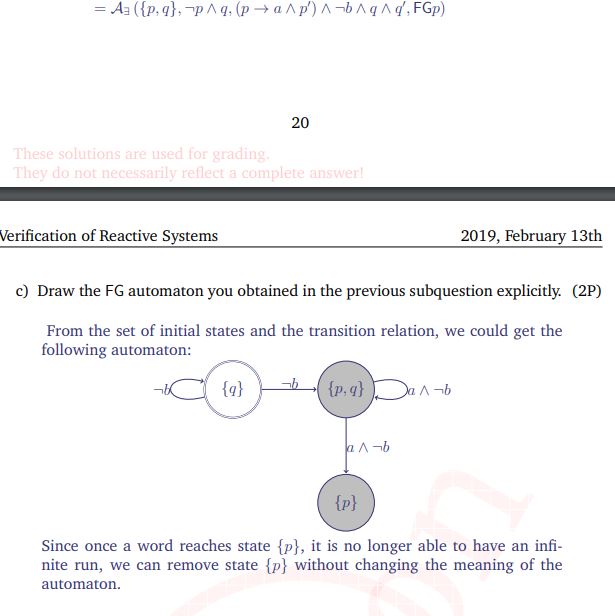

Can someone help me with the procedure to draw the automata from the formula in the screenshot?

Thanks in advance.

in * TF "Intelligent Systems" by (640 points)

1 Answer

+1 vote
Best answer

You just have to determine the satisfying assignments of the transition relation. Why not using the teaching tool with the following inputs to double-check your result?

    state variables      : p;q
    input variables      : a
    initial states       : !p&q
    transition relation  : (p -> a & next(p)) & !b & q & next(q)
    state set            : false
by (166k points)
selected by
